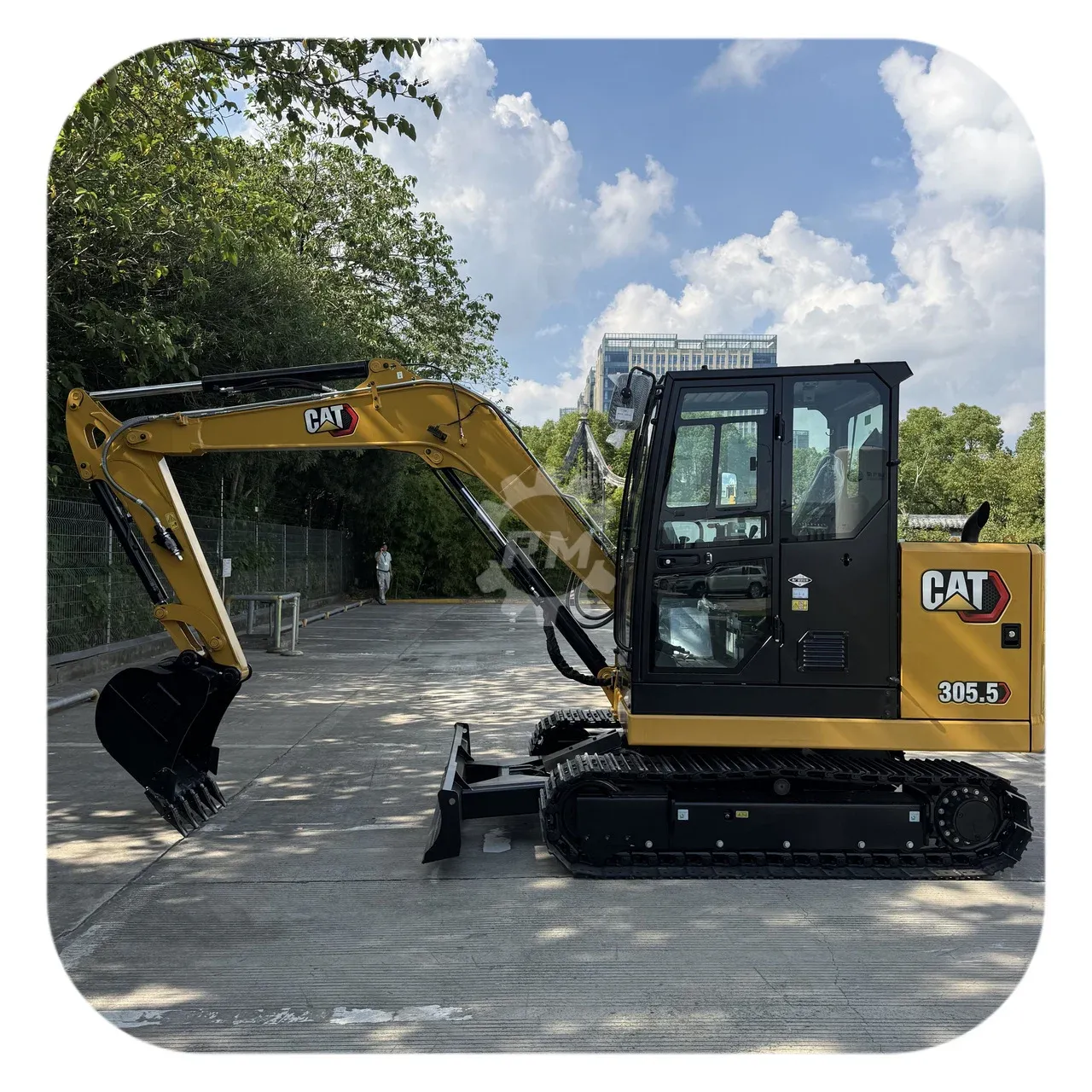

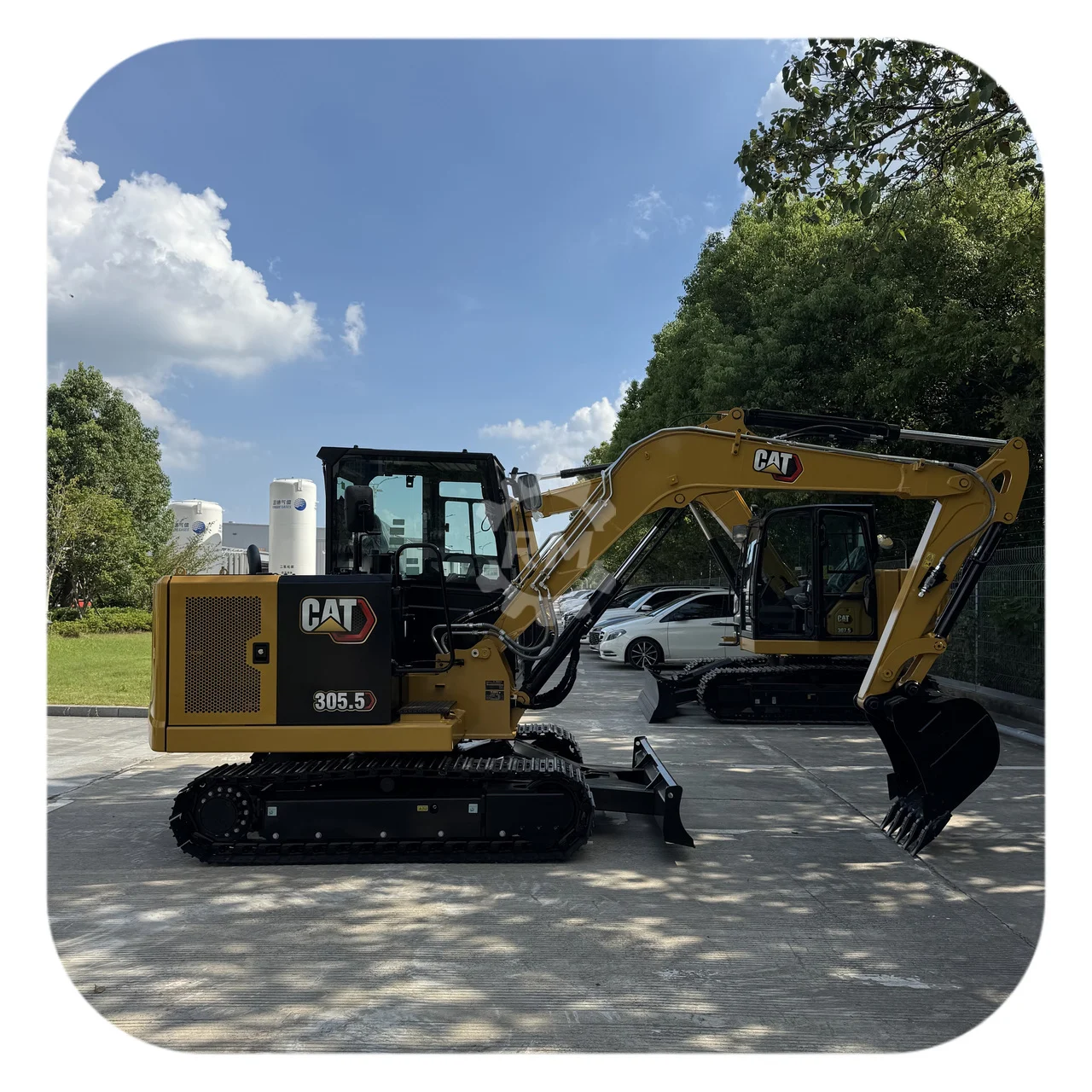

CAT 305.5 Mini Excavator

The CAT 305.5 is a current-production 5.6-ton mini hydraulic excavator listed by Caterpillar for China and Southeast Asia. The current reference configuration uses a Cat C2.2 diesel engine, a standard-tail fixed side-boom design and a 0.22 m³ bucket, and meets China Nonroad Stage IV emissions requirements. This model page covers the current 305.5 generation; confirm the exact build year, serial number, configuration and destination-market compliance for each supplied or used machine.

No exact matching unit is published as in stock right now — submit your target configuration for sourcing.

Request this modelSend detailed requirementsStock alert

This permanent model page is not a claim that a specific serial-number unit is in stock. Every exact listing is published separately and must be verified before purchase.

CAT 305.5 Mini Excavator

Reference data

Specifications & lifecycle

Production
2024 – present
Typical used hours
Buyer specifies preferred working hours; verify the hour meter, ECM data and service records for the matched machine.
Operating weight
5,600 kg with cab (official reference configuration)
Engine
Cat C2.2 diesel
Engine power
32.6 kW / 43.7 hp net; 34.1 kW / 45.7 hp gross
Bucket capacity
0.22 m³ standard reference; additional bucket options available
Transport dimensions
5,765 × 1,950 × 2,549 mm (standard stick and bucket reference)
Current model status
Current Caterpillar new-equipment listing for China; official specification reference AEHQ8476-01 (12-2024).
Engine
Cat C2.2 diesel; China Nonroad Stage IV.
Power
32.6 kW / 43.7 hp net; 34.1 kW / 45.7 hp gross.
Operating weight
5,600 kg with cab, counterweight, steel tracks, 0.22 m³ bucket and operator.
Bucket
0.22 m³ capacity; 766 mm standard reference width.
Maximum dig depth
3,722 mm with standard stick and bucket reference.
Transport dimensions
5,765 mm length × 1,950 mm width × 2,549 mm height.
Hydraulic pump flow
147 L/min at 2,400 rpm.
Production-year scope
Current-generation catalog reference verified from 2024 onward; confirm the exact build date from the machine PIN plate and supply records.
Configuration notice
Specifications and equipment can vary by market and installed work tools; verify the allocated or matched exact machine.
